This Evaluation Kit can be used to test the performance of BTM101B Module.

Interfaces – UART, I2C, Debug SPI

The Header Board comes complete with the BTM101B Module and includes the BLE Stack and simple FLC AT Command interface.

This product is ideal for anybody wishing to use an external host to drive a stand alone BLE Device

The four buttons on the keypad are used as analogue inputs and the four LEDs beside the keypad are analogue outputs.

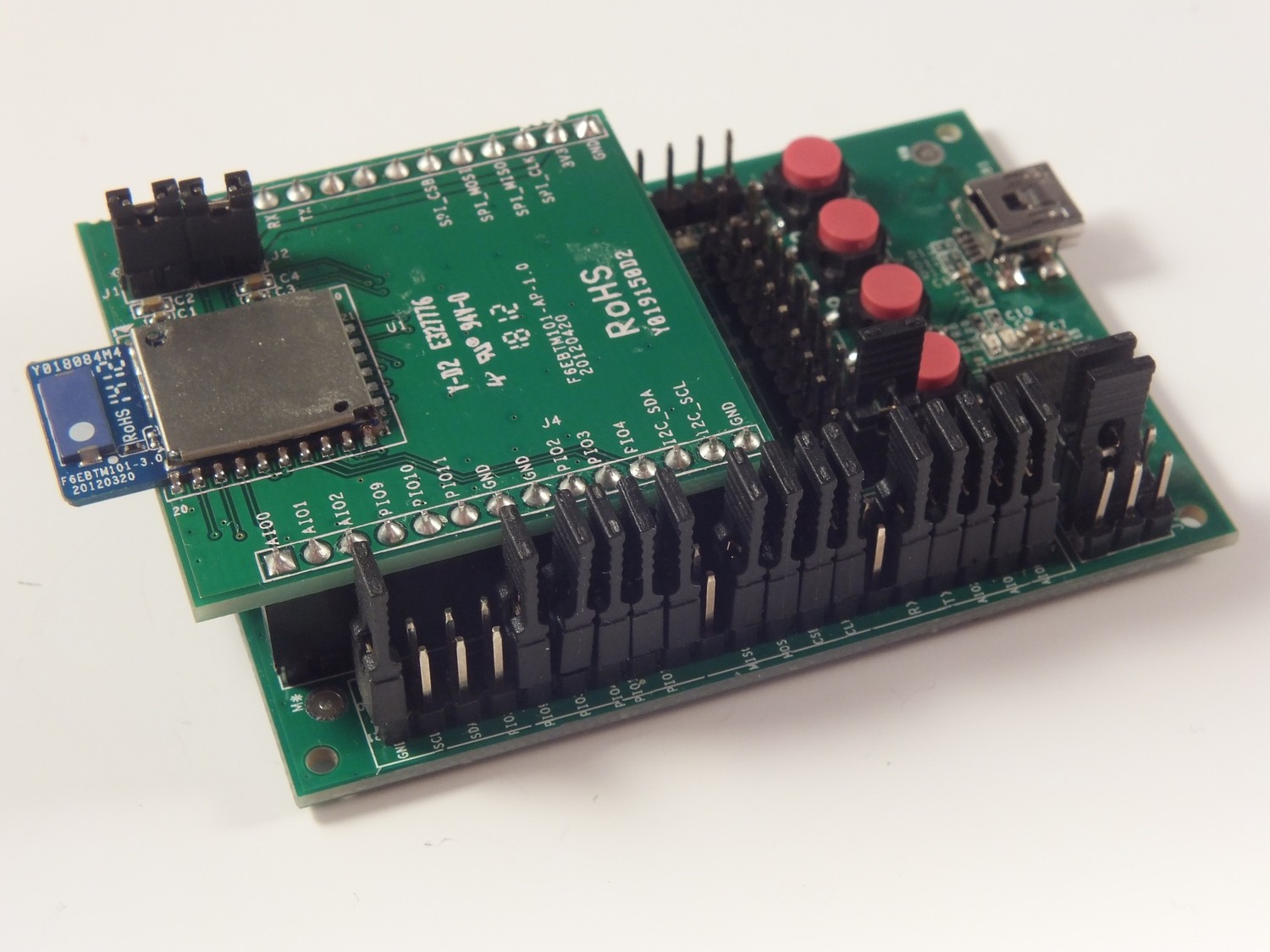

The Kit consists of:

An evaluation board
A carrier board and
A BTM101B-002 module which is mounted on the carrier board.

With BLE Stack & AT Command interface

Manufacturer: Flairmicro

Demo Video (non Youtube): Demo Video - controlling the module over UART to an Android phone

Demo Video (Youtube): Demo Video - controlling the module over UART to an Android phone

PDF: EVK Datasheet
PDF: BTM101B Module Data Sheet
PDF: Programming Guide

PDF: BTM101B APP Development Guide

Link: Programming via the header board HW set up

Demo Video: BTM101B Virtual UART Connection over Bluetooth Low Energy

Demo Video: Connecting the BTM101B to an iPAD - simple Demo
