Enhanced Single mode Bluetooth low energy with compact form factor.

For volumes below 2000 devices parts will be shipped in partial cut T&R.

Pack quantity for a full Tape and Reel is 2000 devices.

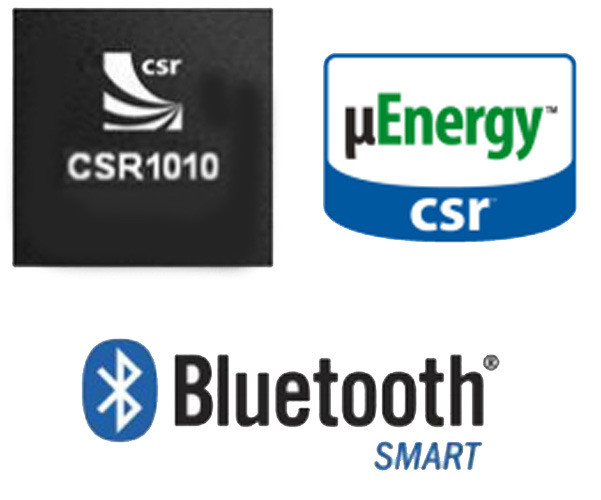

CSR1010 32 QFN is a CSR µEnergy platform device.

CSR µEnergy are CSR's single-mode Bluetooth low energy products for the Bluetooth Smart market.

CSR1011 QFN increases application code and data space for greater application development flexibility.

CSR uEnergy enables ultra low-power connectivity and basic data transfer for applications previously limited by the power consumption, size constraints and complexity of other wireless standards. The CSR uEnergy platform provides everything required to create a Bluetooth low energy product with RF, baseband, MCU, qualified Bluetooth v4.0 stack and customer application running on a single IC.

128KB memory: 64KB RAM and 64KB ROM
Bluetooth v4.0 specification
7.5dBm Bluetooth low energy maximum transmit output power -92.5dBm Bluetooth low energy receive sensitivity
Support for Bluetooth v4.0 specification host stack including ATT, GATT, SMP, L2CAP, GAP
RSSI monitoring for proximity applications
<600nA current consumption in dormant mode
32kHz and 16MHz crystal or system clock
Switch-mode power supply
Programmable general purpose PIO controller
10-bit ADC
12 digital PIOs
3 analogue AIOs
UART
I_C / SPI for EEPROM / flash memory ICs and peripherals
Debug SPI
4 PWM modules
Wake-up interrupt and watchdog timer
QFN 32-lead, 5 x 5 x 0.6mm, 0.5mm pitch

Manufacturer: CSR

PDF: CSR1010 Data Sheet
PDF: CSR uEnergy Introduction
