OPTION 002: With BLE Stack & AT Command Interface

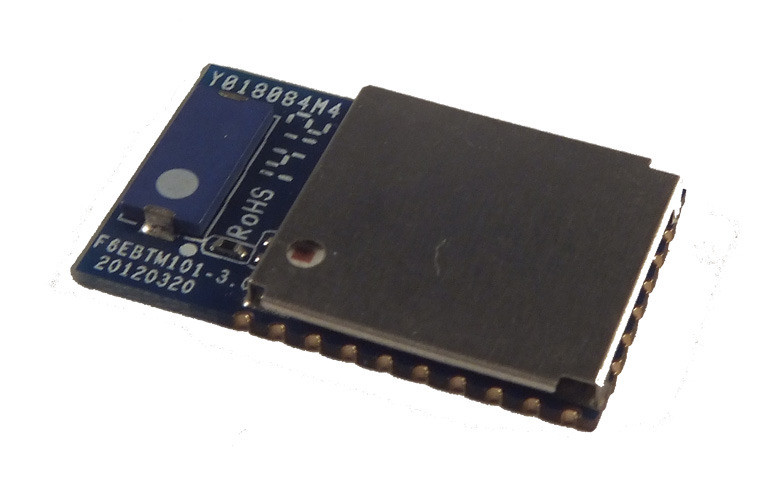

Bluetooth low energy module supporting BT4.0 (BLE only). Based on the CSR1010 best in class uEnergy Integrated IC.

Provides everything required to create a Bluetooth low energy product - RF, base band, MCU, system clock, antenna and qualified Bluetooth 4.0 (BLE only) stack and customer application settings.

Simple AT Command interface.

Low Cost Development environment which links directly into the CSR SDK.

CE, FCC and Bluetooth Sig Certified.

Features:

Support of Bluetooth 4.0 (BLE only) specification host stack including ATT, GATT, SMP, L2CAP, GAP.
RSSI monitoring for proximity applications.
32kHz and 16MHz system clocks, 3 PWM modules, Wakeup interrupt, 64KB RAM, 64K ROM, Watchdog timer.
10 bits ADC, 512 Kbits EEPROM.
UART host interface, Debug SPI host interface.

Manufacturer: Flairmicro

Demo Video (non Youtube): Demo Video - controlling the module over UART to an Android phone

Demo Video (Youtube): Demo Video - controlling the module over UART to an Android phone

PDF: BTM101B Module Data Sheet
PDF: CSR1010 Data Sheet
PDF: AT Command Programming Guide

PDF: BTM101B APP Development Guide

Demo Video: BTM101B Virtual UART Connection over Bluetooth Low Energy

Demo Video: Connecting the BTM101B to an iPAD - simple Demo

Demo Video (non Youtube): BTM101B Virtual UART Connection over Bluetooth Low Energy

Demo Video (non Youtube): Connecting the BTM101B to an iPAD - simple Demo
